IFD65TH752/3

  • Resolution : 3840x2160 (UHD)
  • Brightness : 350 cd/m²
  • Touch Points : 10 Points Multi Touch
  • Touch Techology : IR Touch
  • Interface : HDMI 2.0 / VGA / USB /RS232 / RJ45 / RJ12 for sensors / IR /HP / Audio / Speaker
  • Application Area: Education
INQUIRY TO BUY
Features
Crestron Connected

Crestron Connected certification complements VESTELs presence with inside the corporate, retail, government, better training and hospitality markets, all of which use expert AV controls. As those sectors hold to evolve with growing necessities for simple-to-use merchandise, seamless integration, dependable answers and community connectivity.

Different Sizes for various classrooms

Available in a variety of large screen sizes, the IFD range gives customers the options to choose exactly what they need for their room size.

Wireless Presentation

Teachers, students or any user can share their screen efficiently and conveniently in the classroom or meeting room via EShare application. This application can connect any operating system and show up to 4 different screen at the same time.

Ease of use with Android

Android gives teachers one touch access for lessons and collaboration tools including whiteboard, web browser, apps library, and native wireless screen sharing.

Palm Erase

Automatic palm erasing function allows teachers and students to simplify the white board experience with smooth writing and erasing.

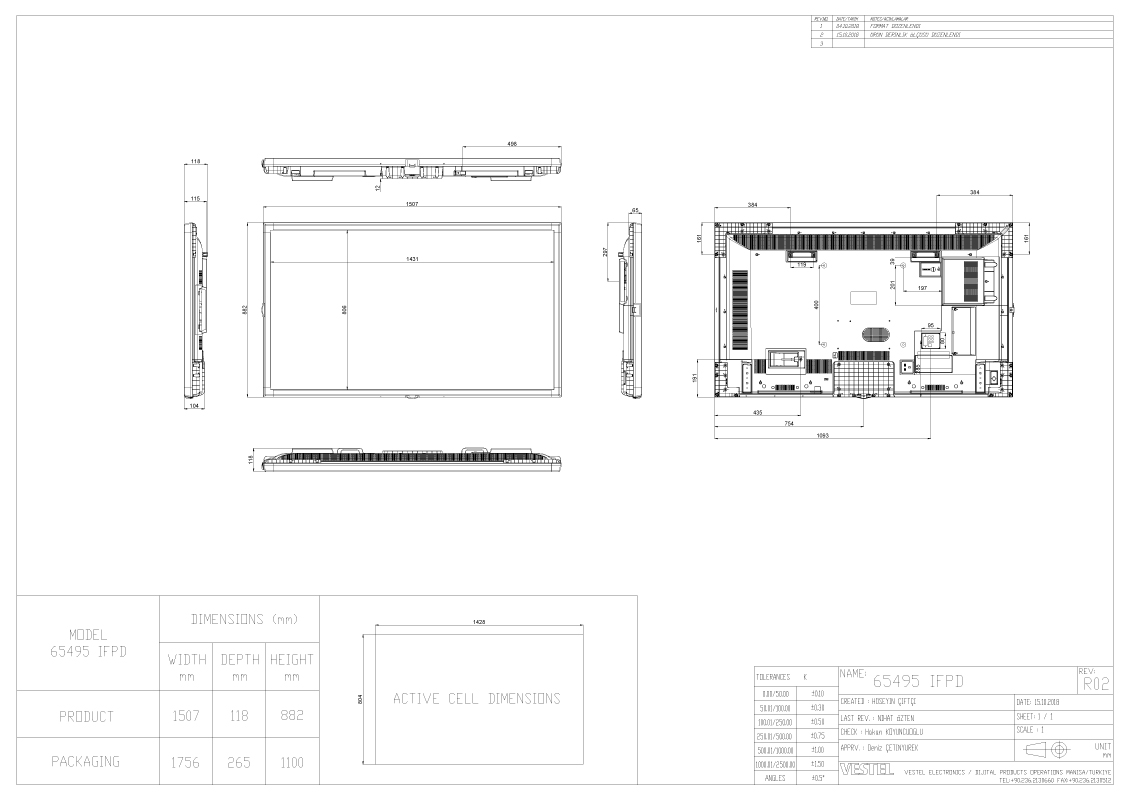

Commercial Datasheet Detailed Mechanical Drawing Detailed Mechanical Drawing Control Document
Specifications
Panel
Screen Size 65"
Panel Technology Direct-Type LED
Backlight Type 350 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 35000:1
Panel Life Time ( Min. ) 30.000 hrs
Life Time (typical) 8 ms
Active Area (H x V) 1428 x 804 mm
Pixel Pitch (H x V) 0.372 x 0.372 mm
PPI (pixel per inch) 68
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 8%
Refresh Rate 60 Hz
Front Type Touch Bezel
Orientation Horizontal
Operation Hours 16/7 Panel
Area of Usage Indoor
Built-in System
Mainboard Model MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 3xHDMI2.0, 2xUSB2.0, USB2.0(Internal), 1xMicroSD
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), 2*Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Touch Interactivity
Type of Touch Technology Infrared (IR) Tech. - 10 Points
Sensitivity Any touch with finger, gloved hand or pointer
Connectivity HID, TUIO, Flash
Compatibility Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation Landscape support
Calibration No need
Accuracy 90% <
Reporting Rate up to 450 fps
Glass Type Anti Glared (AG), Tempered
Frame Rate up to 450 fps
Communication USB 2.0
Power Supply Mode USB
Supply Voltage DC 5V +/- 5%
Average Current < 400 mA
Response Time < 10 ms
Touch Accuracy +/- 2 mm (over 90% area)
Touch Durability Unlimited
HID Compatibility Yes USB
Object Sizes for Touch 5 mm
Mechanical
Product Dimensions (WxDxH) 1507 x 118 x 882 mm
Package Dimensions (WxDxH) 1756 x 265 x 1100 mm
Product Weight 38.6 kg
Package Weight 48 kg
Vesa Mounting 400 x 400 mm
Bezel Width B:38| T:38 | L/R:38 mm
Environmental Conditions
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Power
Power Supply 110 VAC - 240 VAC
Power Consumption
Typical 240 W
Maximum 200 W
Deep Standby ≤ 0.5W
Features
Main Features USB-Autoplay, Auto-switch on Failover, Control Button Lock, HDMI Wake-Up
Mechanical Features IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying handles, Detachable logo positioning, Cable Holders
Optional Features OPS Compliance
Speaker 2 x 8 W
Accessory
Standard QSG, Instruction Book, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
Safety YES
EMC YES
CE YES
Reability Approval YES
