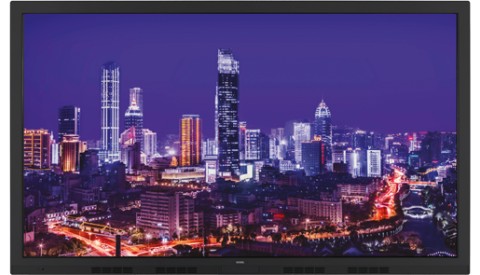

IFE651/1

Display

Bildschirmgröße 65"

Panel-Technologie Direct-Type LED

Helligkeit 350 cd/m²

Auflösung UHD: 3840 x 2160 - HDR10

Kontrastverhältnis 4000:1

Dynamisches Kontrastverhältnis 35000:1

Panel-Lebensdauer (Min.) 30000 Hrs

Reaktionszeit 8 ms

Aktiver Bereich (H x V) 1428 x 804 mm

Pixelneigung (H x V) 0.372 x 0.372 mm

PPI (pixel per inch) 68

Betrachtungswinkel 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Farbwert 1.07 B (10-bit)

Bildschirmbearbeitung 2H

Trübungsgrad 8%

Aktualisierungsrate 60 Hz

Ausrichtung Horizontal

Betriebsstunden 16/7

Einsatzbereich Indoor

Eingebautes System

Mainboard-Modell 130VS

Rückwärtige E/As

RGB-Eingang VGA(DE-15F)

RGB-Ausgang N/A

Video-Eingang 1xHDMI2.0

Video-Ausgang N/A

Audio-Eingang Eingang

Audio-Ausgang Line-Out

Externe Steuerung Dienst (RJ12)

USB 1xType B for touch

Touch Interaktivität

Art der Touch-Technologie Infrarot (IR)-Technologie

Kontinuierliche Berührungspunkte 10 Punkte

Empfindlichkeit Jede Berührung mit dem Finger, der behandschuhten Hand oder dem Zeiger

Konnektivität HID, TUIO, Flash

Kompatibilität Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Androi

Ausrichtung Landschaftsunterstützung

Kalibrierung Das ist nicht nötig

Genauigkeit 90% <

Meldefrequenz Bis zu 450 fps

Glastyp Blendfrei (AG), 4 mm gehärtet

Bildfrequenz Bis zu 450 fps

Kommunikation USB2.0

Netzteil-Modus USB

Versorgungsspannung DC 5V +/- 5%

Durchschnittlicher Strom < 400 mA

Reaktionszeit < 10 ms

Touch-Genauigkeit +/-2mm (over 90% area)

Touch-Lebensdauer Unbegrenzt

HID-Kompatibilität Ja USB

Objektgrößen für Touch 5 mm

Mechanisch

Produktabmessungen (BxTxH) 1525 x 116 x 915 mm

Verpackungsabmessungen (BxTxH) 1765 x 265 x 1100 mm

Produktgewicht 34 Kg

Package Weight 43 Kg

Vesa-Befestigung 400 x 400 mm

Rahmenbreite B:56 | T:41 | L/R:41 mm

Umgebungsbedingungen

Temperaturbedingungen +40°C / 0°C

Betriebsluftfeuchtigkeit 90%

Leistung

Stromversorgung 110 VAC - 240 VAC

Leistungsaufnahme

Typisch 235W

Deep-Standby-Modus ≤ 0.5W

Eigenschaften

Haupteigenschaften Externe PC- und OPS-PC-Nutzung

Mechanische Eigenschaften Fronttasten, Wippschalter

Lautsprecherleistung 2x16W

Zubehör

Standard QSG, IB, Netzkabel, Fernbedienung, RC-Akku, Montagesatz

Zertifizierung

Sicherheits JAWOHL

EMV JAWOHL

EG JAWOHL

* Spezifikationen können sich ändern.
