Features
Remote Control

Any number of Vestel VWs can be remotely controlled over RS232 Loop configuration. This eases the installation process of the VW displays, by controlling and configuring all the units via PC at the same time.

Landscape and Portrait Mode

Our Video Walls can be displayed in either landscape or portrait mode. Vestel’s 24/7 professional displays not only allow for installation in portrait mode, but also for additional display protection. The displays’ Pixel Shifting feature reduces the risk of any on-screen imagery sticking.

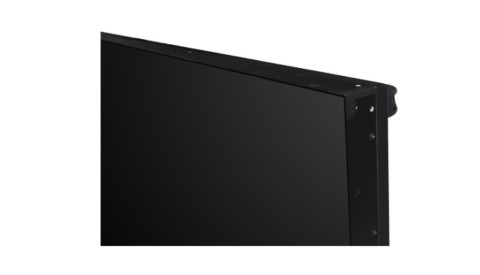

Ultra / Extra / Razor Narrow Bezel

Reducing the gap between each display area. Vestel’s designs help create an almost seamless overall on screen image with 3.5 mm, 1.8 mm and less than 1 mm combined bezels.

Daisy Chain with Display Port or HDMI Option

Reduce cost and maximize video quality with Vestel’s Video Wall displays, using Display Port 1.2a-enabled or HDMI 2.0 screens, Vestel offers a daisy chain solution that cuts the cost of installation, cabling and maintenance. This daisychained monitor set up also ensures a more immersive viewing experience.

Real Ultra HD Resolution

With our videowall you can deliver real UHD resolution in a 2 x 2 arrangement. The videowalls are capable of combining 4 x FHD displays to create a single Real UHD image without the need of external processing or scaling devices.

White color Calibration

For managing color uniformity with highest performance, color calibration has been made available for on-site maintenance. This results in a more uniform colour distribution and minimised colour distortion.

Higher Visibility

Vestel panels come with anti-reflective treatment to decrease glare under strong light exposure. Aside from glare protection, 700 Nits VWs ensure high visibility even under high levels of ambient light.

Great Picture with Different Brightness Option

Create a seamless and striking visual experience with our Video Wall displays. Offering 500-700 Nit options, our monitors can display your content in picture perfect resolution, whatever the lighting conditions.

Longer Stability

Vestel VWs are able to tolerate longer hours of operation, equipped with pixel-shifting feature to prevent a fixed image from sticking on the screen.

Wall Mount Option

Vestel presents the Wall Mount option for landscape usage. Vestel Wall mounts are able to move in all possible directions making it easy to place and align the bezels perfectly.

Eco Design

Vestel VWs are made to operate at lower energy usage while performing at high levels. Also, Vestel follows the worldwide standards for limiting harmful substances and eliminating waste products.

Video Wall Controller Tool

This new software puts ease of use for Video walls by reaching Auto/Manual parameter setup on each/multi/all selected display, Remote control by IR Simulation or LAN/RS232 Control and Video and Picture rotation for Informal Layouts on one software.

IPS Reliability

Vestel IPS displays present the most clear image in both landscape and portrait orientation without any image distortion. IPS also provides 178o ultra-wide viewing angle, displaying the most accurate image quality.

Specification Sheet Commercial Datasheet
Specifications
Panel
Screen Size 49"
Panel Technology IPS
Backlight Type DLED
Brightness (typical) 500 cd/m2
Native Resolution 1920x1080
Contrast Ratio (typical) 1200 : 1
Dynamic Contrast Ratio 500000 : 1
Life Time (typical) 60000hrs
Response Time (typical) 8 ms
Active Area (H x V) 1073.8 (H) x 604 (V)
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 3%
Refresh Rate 60 Hz
Front Type Ultra narrow bezel
Orientation Horizontal / Vertical
Operation Hours 24/7 Panel
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 2xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF

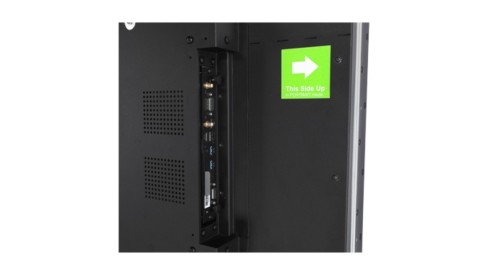

External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Environmental Conditions
Operating Temperature +50°C / 0°C
Operating Humidity %90
Power
Power Supply 110 VAC - 240 VAC
Power Consumption
Typical 108 W
Maximum 120 W
Deep Standby 0.5W
Mechanical Features
Size 1077.6 (W) x 110.6(D) × 607.8 (H) mm
Shipping Size 1223 (W) x 269 (D) x 756 (H) mm
Vesa Mounting Size 400 x 600
Bezel Width 3.5 mm
Features
Main Features Videowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
Mechanical Features ON/OFF Button, IR Extender, Carrying Handles , OPS option (with a costup)
Speaker N/A
Accessory
Standard QSG, IB, Power Cord, Remote Control, RC Battery, Display Port Cable, USB to Rs232 Converter
Mounting Kit Standard
Certification
Safety Yes
EMC Yes
CE Yes
* Specifications are subject to change without prior notice.
