• VAP400 (Vestel Android Platform 400)
  • High performance dual-pen writing experience up to 20 points
  • Easy to use personalized user interface
  • Enhanced inputs/outputs selection via rear and front connections
  • Selected tools and applications for engagement and productivity
  • Flexible capture of any content and annotation over any source
  • Powerful Front Facing Speakers 2 x 20W
Specification Sheet Commercial Datasheet
Screen Size 65"
Backlight Type Direct-Type LED
Brightness (Nits) 350 cd/m²
Native Resolution UHD: 3840 x 2160 HDR10
Aspect Ratio 16:9
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 35000:1
Life Time (typical) 50000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 1428 x 803 mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Haze Level 8%
Refresh Rate 60 Hz
Glass Type 4 mm Tempered Anti-Glare
Glass Hardness 8 Mohs
Built-in System
Mainboard Model MB400VS
Operating System Custom OS (built on Android AOSP)
Memory 4 GB DDR4
Storage 64 GB EMMC
CPU CA55 Quad core
GPU Mali-G31 MP2
Wired 10/100/1000 Mbps Ethernet
WiFi WiFi 5 (802.11 a/b/g/n/ac)
Bluetooth BT 5.1
User Experience

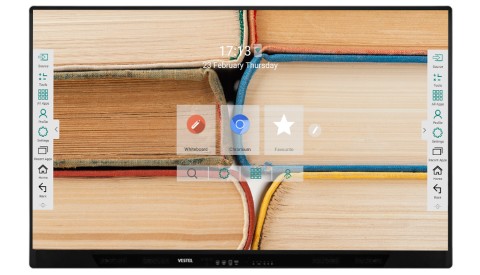

Home Page Personalized Background Home buttons Navigation bar Quick Palette
Launcher All Apps Profile Login/Logout Quick Settings Tools Source Change
Applications Whiteboard, ScreenShare, Web browser, File Manager, Media Player, Officesuite, AquaMail, CloudFileManager
Board Management System Cloud System for User Account Management
Others Over-the-Air SW Update Screen Freeze Screen Lock Dual Pen Recognition Palm Erase Annotate over Any Source
Monitor Connectivity
Video Input 2 x HDMI2.0 (HDCP2.2) 1 x HDMI2.0 (Daisychain Input) MicroSD (up to 1TB) OPS Interface
Video Output 1 x HDMI2.0 (Daisychain Output) Headphone(Line-out) Optic SPDIF
USB 1 x USB-A (2.0) 1 x USB-A (3.0) 1 x USB-C (3.0)
Front Accessibility
Front I/Os USB-A (2.0 / autoswitch for Android & OPS) USB-A (3.0 / autoswitch for Android & OPS) 1 x USB-B (touch out) 1 x HDMI2.0 Input
Console Buttons Standby on/off Volume up Volume down Touch enable/disable Source Change, Settings
IR Receiver Fixed on bezel
Audio 2x20 W - Front Facing Speakers
Pen Holder Integrated Magnetic Tray
Touch Interactivity
Type of Touch Technology Infrared (IR) Technology
Continuous Touch Points Max. 20 touch points* *Bounded by application's limits
Touch Resolution 32768 x 32768 px
Sensitivity Any touch with finger, gloved hand or pointer
Compatibility Windows®7,Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Response Time < 5 ms
Touch Accuracy +/- 1 mm (over 90% area)
Pen Type Battery-less Pen
Object Sizes for Touch 2.8 & 10 mm
LAN (Control) RJ45 (LAN & Control) 3.5mm jack(RS232 Control) 2 x RJ12 (Sensor Box & service input)
Product Dimensions (WxDxH) 1497 x 930 x 113 mm
Package Dimensions (WxDxH) 1756 x 1100 x 265 mm
Product Weight 43.75 kg
Package Weight 56.75 kg
Vesa Mounting 400 x 400 mm - M6
Bezel Width B:66 | T:15 | L/R:15 mm
Environmental Conditions
Operating Temperature +40°C / 0°C
Operating Humidity 90%
Power Supply 110 VAC - 240 VAC
Power Consumption
Typical 194 W
Maximum 220 W
Mechanical Features Slim Bezel, User-Friendly Front Ports and Buttons, Detachable power cable, Carrying handles
Safety YES
* Specifications are subject to change without prior notice.
