Panel
Screen Size
65"
Panel Technology
IPS
Backlight Type
Slim DLED
Brightness (typical)
500 cd/m²
Native Resolution
3840 x 2160 (16:9) - UHD
Contrast Ratio (typical)
1200:1 (typ.)
Dynamic Contrast Ratio
50000:1
Panel Life Time ( Min. )
50000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1428.5 (H) × 803.5 (V) mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07G (8bits + FRC)
Color Gamut
72% NTSC
Haze Level
1%
Refresh Rate
60 Hz
Orientation
Landscape / Portrait
Operation Hours
24/7
Area of Usage
Indoor
Built-in System
Mainboard Model
17MB400VS
Operating System
Custom OS (built on Android AOSP)
Memory
2 GB DDR4
Storage
16 GB eMMC
Additional Storage
Micro SD (up to 1TB)
CPU
Quad-Core ARM Cortex-A55
GPU
ARM Mali-G31 MP2
Wired
10/100 Mbps Ethernet, IEEE 802.1X Authentication
WiFi
WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
Bluetooth
BT 5.1
HTML5 Browser
Vewd
Wireless Display
Miracast

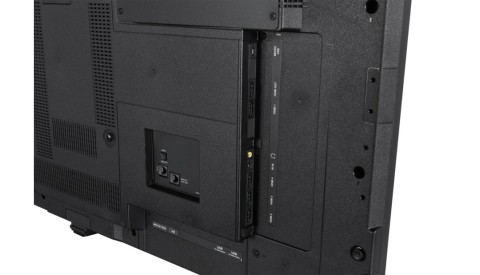

Monitor Connectivity
Video Input
4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
Video Output
1xHDMI2.0
Audio Output
Headphone, Optic SPDIF
External Control
RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
External Sensor
RJ12
Mechanical
Product Dimensions (WxDxH)
1456 x 74 x 834 mm
Package Dimensions (WxDxH)
1650 x 190 x 997 mm
Product Weight
24.7 kg
Package Weight
34.75 kg
Vesa Mounting
600 (W) x 400 (H) mm M6
Bezel Width
B: 14 mm, T/L/R: 10 mm
Environmental Conditions
Operating Temperature
0-40°C
Operating Humidity
10-90%
Power
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical
194 W
Maximum
220 W
Deep Standby
≤0.5 W
Features
Main Features
HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, Crestron Connected, SNMP
Mechanical Features
Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover
Speaker
2x10 W
Accessory
Standard
QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety
Yes
EMC
Yes
CE
Yes
