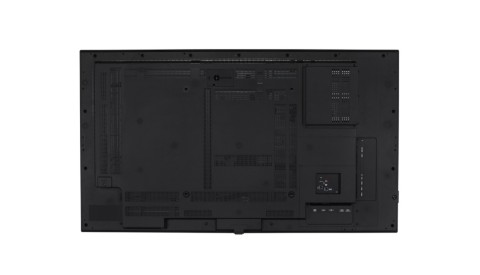

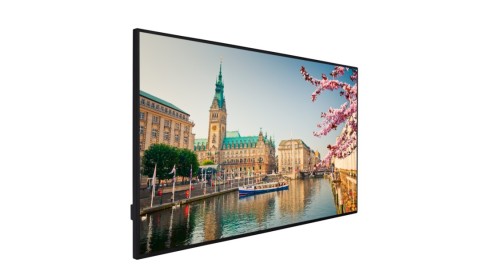

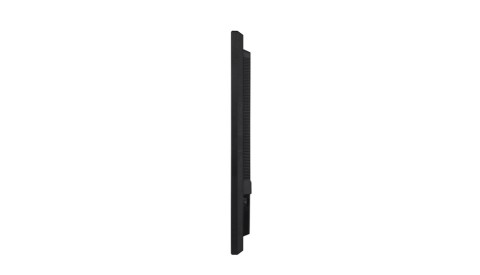

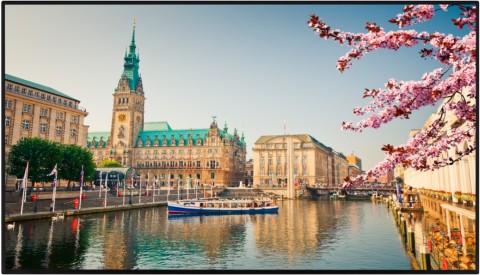

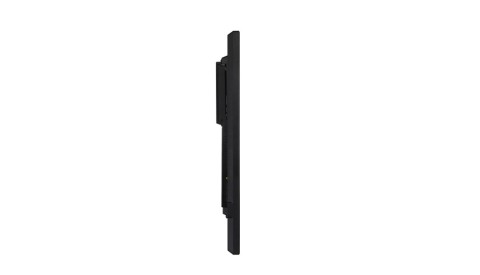

PN Series

PN55B-IN

  • Resolution: 3840x2160 (UHD)
  • Brightness: 500 cd/m²
  • Operation: 24/7
  • OPS/SDM/NUC Module Support
  • Embedded IR/IR Extender Options
  • 30° Tilting Installation
  • Application Area: Retail, Restaurants/QSR, Transportation, Control Room
INQUIRY TO BUY
Features
Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover

Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Scheduler

The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Optional OPS Support

All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specification Sheet Commercial Datasheet
Specifications
Panel
Screen Size 55''
Backlight Type Slim DLED
Brightness (typical) 500 cd/m²
Native Resolution 3840 x 2160 (16:9) - UHD
Contrast Ratio (typical) 1200:1(typ.)
Dynamic Contrast Ratio 50000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 8ms
Active Area (H x V) 1209.6 × 680.4
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 G (8 bit + FRC)
Screen Treatment 3H
Haze Level 1%
Refresh Rate 60Hz
Orientation Landscape / Portrait
Operation Hours 24 / 7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Mechanical
Product Dimensions (WxDxH) 1236 x 63 x 709 mm
OPS Area depth: 83 mm
Package Dimensions (WxDxH) 1369 x 165 x 874
Product Weight 17 kg
Package Weight 22 kg
Vesa Mounting 400 mm(W) x 400 mm(H) M6
Bezel Width 9/9/9/11 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 144 W
Deep Standby ≤0.5 W
Features
Main Features Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock
Mechanical Features Joystick, Rocker Switch, Detachable Power Cable, Dettachable Logo, Internal Usb Cover, 30-degrees Tilting Installation, Overlay Touch Kit Compatibility
Optional Features SDM or OPS compatibility, Embedded IR, IR extender option
Speaker 2x10 W
Accessory
Standard QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety Yes
EMC Yes
CE Yes
* Specifications are subject to change without prior notice.
