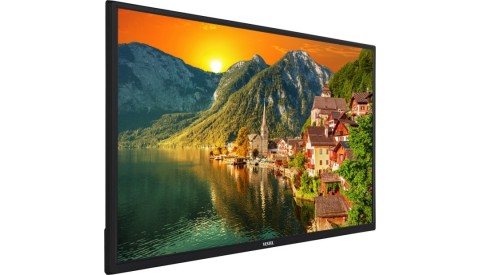

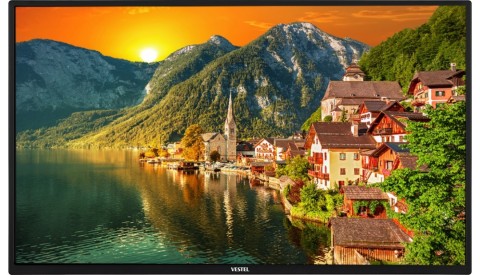

EA | EL + Series

EL32D-IN

  • VAP400 (Vestel Android Platform 400)
  • Resolution : 1920x1080 (FHD)
  • Brightness : 450 cd/m2
  • Operation : 24/7
  • Bezel : 21-25 mm (T/R/L), 13-16 mm (B)
  • Interface : HDMI 2.0 / USB /RS232 / RJ45 / Speaker
  • Application Area: Retail
INQUIRY TO BUY
Features
Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover

Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is desirable for its thinnest depth among our digital signage displays.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Specification Sheet Commercial Datasheet Model Drawing Wall Mount Drawing
Specifications
Panel
Screen Size 32"
Panel Technology VA
Backlight Type DLED
Brightness (typical) 450 cd/m²
Native Resolution 1920 x 1080 (16:9) - FHD
Contrast Ratio (typical) 3000:1 (typ.)
Dynamic Contrast Ratio 35000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 9.5 ms
Active Area (H x V) 698.40 x 392.8 mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 16.7M
Color Gamut 68% NTSC
Haze Level 3%
Refresh Rate 60 Hz
Orientation Landscape / Portrait
Operation Hours 24/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB450VS
Operating System Custom OS (built on Android AOSP)
Memory 2 GB DDR4
Storage 16 GB eMMC
CPU Quad-Core ARM Cortex-A55
GPU ARM Mali-G31 MP2
Wired 10/100 Mbps Ethernet
WiFi WiFi 5 (802.11 a/b/g/n/ac)
HTML5 Browser Vewd

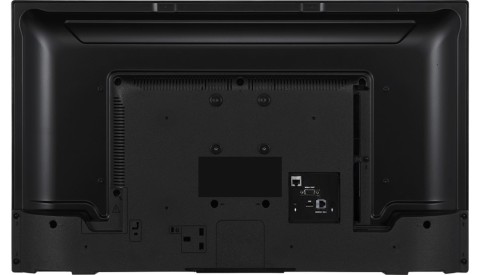

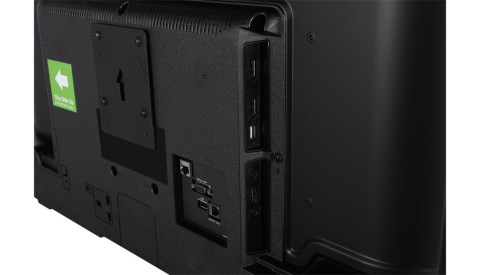

Monitor Connectivity
Video Input 2xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0
Video Output 1xHDMI2.0
External Control RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)

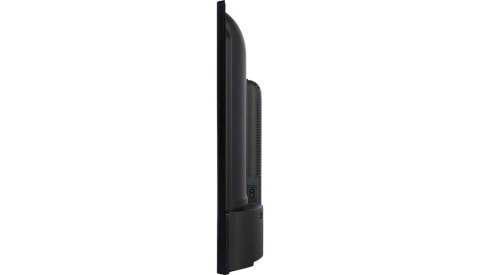

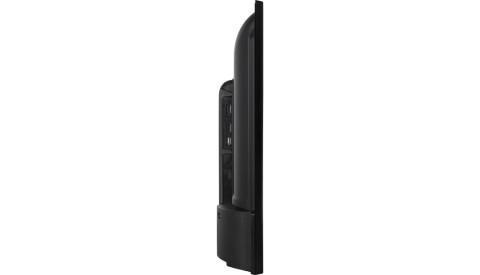

Mechanical
Product Dimensions (WxDxH) 734 x 78 x 435 mm
Package Dimensions (WxDxH) 795 x 128 x 530 mm
Product Weight 4.5 kg
Package Weight 6 kg
Vesa Mounting 75 x 75 mm M4
Bezel Width B:21, T/ L/R:14 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power
Power Supply ‘110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 32 W
Maximum 65 W
Deep Standby ≤0.5 W
Features
Main Features HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
Mechanical Features Joystick, Fixed IR lens, Rocker Switch, Detachable Power Cable
Speaker 2x6 W
Accessory
Standard QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
Safety Yes
EMC Yes
CE Yes
* Specifications are subject to change without prior notice.
