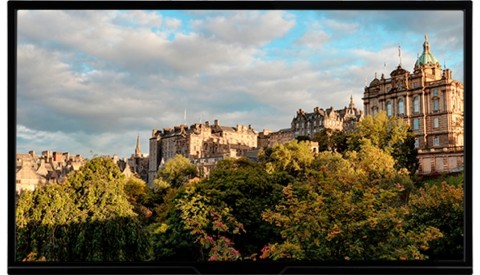

E Series

EA32C-IN

  • Resolution : 1920x1080 (FHD)
  • Brightness : 350 cd/m2
  • Operation : 16/7
  • Bezel : 21-25 mm (T/R/L), 13-16 mm (B)
  • Interface : HDMI 2.0 / DP 1.2A / USB /RS232 / RJ45 / Audio / Speaker
  • Application Area: Retail
INQUIRY TO BUY
Features
Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Signal Failover

Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Source Switching

It is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience.

Auto Launch

We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

Specification Sheet Commercial Datasheet Model Drawing
Specifications
Panel
Screen Size 32"
Panel Technology FSA (VA)
Backlight Type Direct-Type LED
Brightness (typical) 350 cd/m²
Native Resolution 1920 x 1080 (16:9) - FHD
Contrast Ratio (typical) 3000:1
Dynamic Contrast Ratio 35000:1
Response Time (typical) 8.5 ms
Active Area (H x V) 698.40 x 392.85 mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 16.7M (8bits)
Screen Treatment 3H
Haze Level 0,03
Refresh Rate 60 Hz
Orientation Landscape
Operation Hours 16/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB130VS
Operating System Linux (HTML5 based app support)
Wired 10/100 Mbps
WiFi WiFi 4 (802.11 a/b/g/n)
Bluetooth NA
Monitor Connectivity
RGB Input N/A
RGB Output N/A
Video Input 1xHDMI2.0, 2xUSB2.0, DP1.2a
Video Output DP1.2a
Audio Input N/A
Audio Output Headphone
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Mechanical
Product Dimensions (WxDxH) 734 x 78 x 435 mm
Package Dimensions (WxDxH) 795 x 128 x 530 mm
Product Weight TBD
Package Weight TBD
Vesa Mounting 75 x 75 mm M4
Bezel Width B:21 | T/ L/R:14 mm
Power
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 42 W
Maximum 65 W
Deep Standby ≤0.5 W
Features
Mechanical Features Joystick, IR Extender or Embedded IR Support Options, Rocker Switch, Detachable power cable(Class 2), Logo on bezel only horizontal
Speaker 2 x 6 W
Certification
Safety YES
EMC YES
CE YES
* Specifications are subject to change without prior notice.
