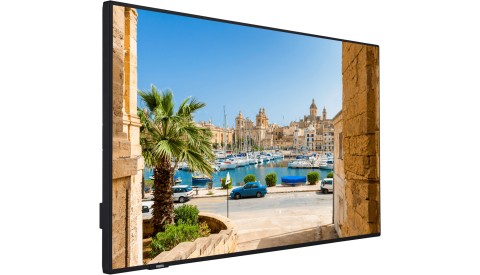

High Haze Line


  • VAP400 (Vestel Android Platform 400)
  • Resolution: 3840x2160 (UHD)
  • Brightness: 500 cd/m²
  • Haze: 25%
  • Operation: 24/7
  • Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation
Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.

Signal Failover

Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specification Sheet Commercial Datasheet Mechanical Drawing Wall Mount Drawing
Screen Size 43"
Panel Technology IPS
Backlight Type Slim DLED
Brightness (typical) 500 cd/m²
Native Resolution 3840 x 2160 (16:9) - UHD
Contrast Ratio (typical) 1200:1 (typ.)
Dynamic Contrast Ratio 50000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 941.1 (H) × 529.4 (V) mm
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07G (8bits + FRC)
Color Gamut 72% NTSC
Haze Level 25%
Refresh Rate 60 Hz
Orientation Landscape / Portrait
Operation Hours 24/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB400VS
Operating System Custom OS (built on Android AOSP)
Memory 2 GB DDR4
Storage 16 GB eMMC
CPU Quad-Core ARM Cortex-A55
GPU ARM Mali-G31 MP2
Wired 10/100 Mbps Ethernet, IEEE 802.1X Authentication
WiFi WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
Bluetooth BT 5.1
HTML5 Browser Vewd
Wireless Display Miracast
Rear I/Os
Video Input 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
Video Output 1xHDMI2.0
Audio Output Headphone, Optic SPDIF
External Control RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
External Sensor RJ12
Product Dimensions (WxDxH) 963 x 63 x 555 mm
Package Dimensions (WxDxH) 1050 x 178 x 718 mm
Product Weight 10.4 kg
Package Weight 13.5 kg
Vesa Mounting 200 (W) x 200 (H) mm M6
Bezel Width B: 9 mm, T/L/R: 6 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 127 W
Maximum 160 W
Deep Standby ≤0.5 W
Main Features HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP
Mechanical Features Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, IP20
Speaker 2x8 W
Standard QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Safety Yes
CE Yes
* Specifications are subject to change without prior notice.
