OPS Series

OPSKL381

Discontinued Products
INQUIRY TO BUY

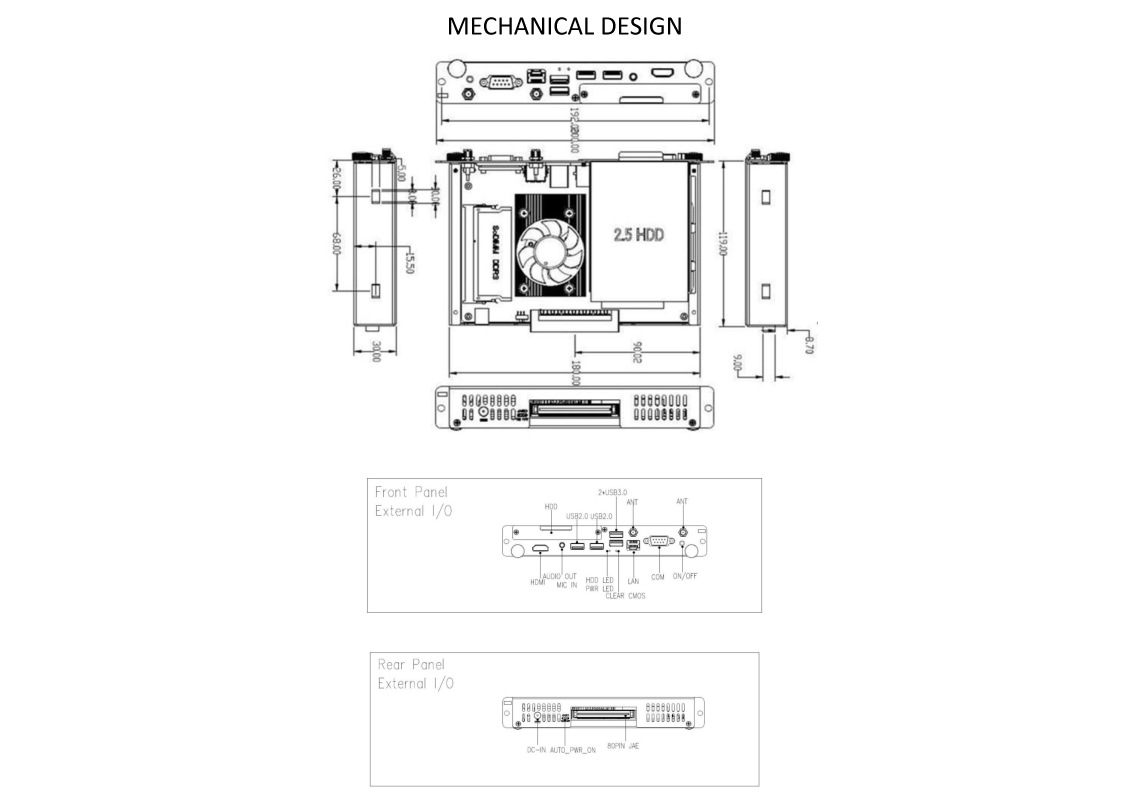

Specification Sheet Commercial Datasheet Detailed Mechanical Drawing Detailed Mechanical Drawing
Specifications
General Features
CPU Intel® Celeron 3867U 2 cores, 2 threads 1.8GHz
Chipset KabyLake SoC 2MB L3 Cache
Resolution Support Ultra HD Max. 4096 x 2160 @30Hz
GPU Intel® HD Graphics 610
Memory 4GB SO-DIMM DDR4
Network LAN: 10/100/1000 Mbps WLAN : 802.11 a/c M.2 Bluetooth 4.0
Storage 64GB SSD
I/O Ports 1 x RJ45 1 x RS232 2 x USB3.0 2 x USB2.0 1 x HDMI out 1 x Audio in&out 2 x WiFi antenna connector 1 x Power button
Operating System Windows 10 Pro
Mechanical
Product Dimensions (WxDxH) 180 x 119 x 30 mm
Package Dimensions (WxDxH) 237 x 180 x 59 mm
Product Weight 0.8 kg
Package Weight 1 kg
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 95%
Power
Voltage, HZ 12~19V
Power Supply DC-In
Features
Main Features Wake-on-LAN Support, Watchdog Timer
Certification
Safety YES
EMC YES
CE YES
* Specifications are subject to change without prior notice.
