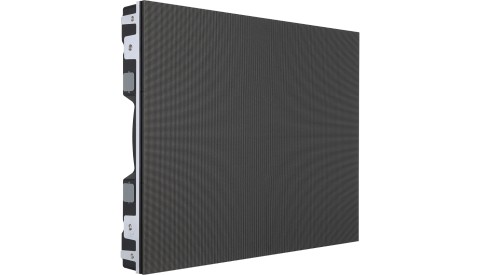

P2.0 Series

P2.0 - LI20F9B2

  • Pixel Pitch : 2,0
  • Resolution : 160x80
  • Brightness : 900 nit
  • Operation: 24/7
  • Service Access: Front
Specification Sheet Commercial Datasheet
Operating environment Indoor
Pixel pitch 2.0mm
Service type Front access
Brightness (nits) 900
Contrast Ratio 85000
Lamp type SMD 1515
Lifespan (hours at %50 brightness) 100K
White color calibration (adj.) Only LED brightness calibration
Gray scale 13 bits
Brightness control 256 level
Module Specifications
Module dimensions (mm) 320x160
No. of Modules per Cabinet (W × H) 2x3
Refresh frequency 3180Hz
Module resolution 160x80
LED drive method Dynamic
D-IC Vendor Chipone
D-IC part name ICND2153
Tcon Vendor Novastar
Tcon part name A5S Plus
Panel Specifications
Panel material Die-casting aluminum
Panel paint ES powder coated
Panel dimensions (mm)* 640x480
IP level N/A
Panel weight 8,8 kg
Panel resolution 320x240
Pixel density (pcs/sqm) 250000
Viewing angle (horizontal x vertical) 160° x 160°
Minimum viewing distance(meter) >2
Operating temperature range 0C ~ +40C
Storage temperature range -20C ~ +60C
Operating humidity 10% ~ 90%
Power input voltage 110 ~ 240 VAC
Power input frequency 50 ~ 60 Hz
Average power per sqm (%30 Gray) 86
Max power per sqm(W) 613
Active PFC YES
Load regulation 2.5%
Panel installation type Fixed
Cooling Passive cooling
Standard video sources* Subject to Sending Box Selection
Other direct video sources Subject to Sending Box Selection
Brightness adjustment Automatic Subject to Sending Box Selection
Death pixel monitoring N/A
Module monitoring Yes with PC
Temperature monitoring Yes with PC
Smoke monitoring N/A
Voltage monitoring Yes with PC
Power redundancy N/A
Signal path backup N/A
Signal transmission CAT5e
Standby scheduling N/A
Power on/off scheduling N/A
Power saving mode Yes
Certification* Safety 60950-1, EMC EN 55032:2015 – Class A, EN 55024:2010 + A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013
* Specifications are subject to change without prior notice.
