PDX Series

PDX75UF86/4

  • Resolution: 3840x2160 (UHD)
  • Brightness: 1000 cd/m2
  • Operation: 24/7
  • Bezel: 38 mm (T/R/L), 38 mm (B)
  • Interface: HDMI 2.0 / VGA / USB / RS232 /RJ45 / RJ12 / IR / HP / Audio / Speaker
  • Application Area: Retail
INQUIRY TO BUY
Features
Crestron Connected

Crestron Connected certification complements VESTELs presence with inside the corporate, retail, government, better training and hospitality markets, all of which use expert AV controls. As those sectors hold to evolve with growing necessities for simple-to-use merchandise, seamless integration, dependable answers and community connectivity.

Operation Time Support

Professional Panels used with this series are quality confirmed to operate 24 hours a day without any issues. Upon this, the series come with 2500 Nits brightness levels suitable for indoor and semi-outdoor environments.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Optional OPS Support

All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Signal Failover

Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Auto Launch

We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Brightness Scheduler

Customization of a range of brightness levels via manual setup without any sensor requirement is made available using the brightness scheduling feature. The feature also helps to decrease the energy expenses while saving the environment and extending the life of the monitor.

Display Control over RS232 and LAN

Our platform allows users to control their displays, using a large range of commands through either a Local Area Network or direct RS232 Serial connection.

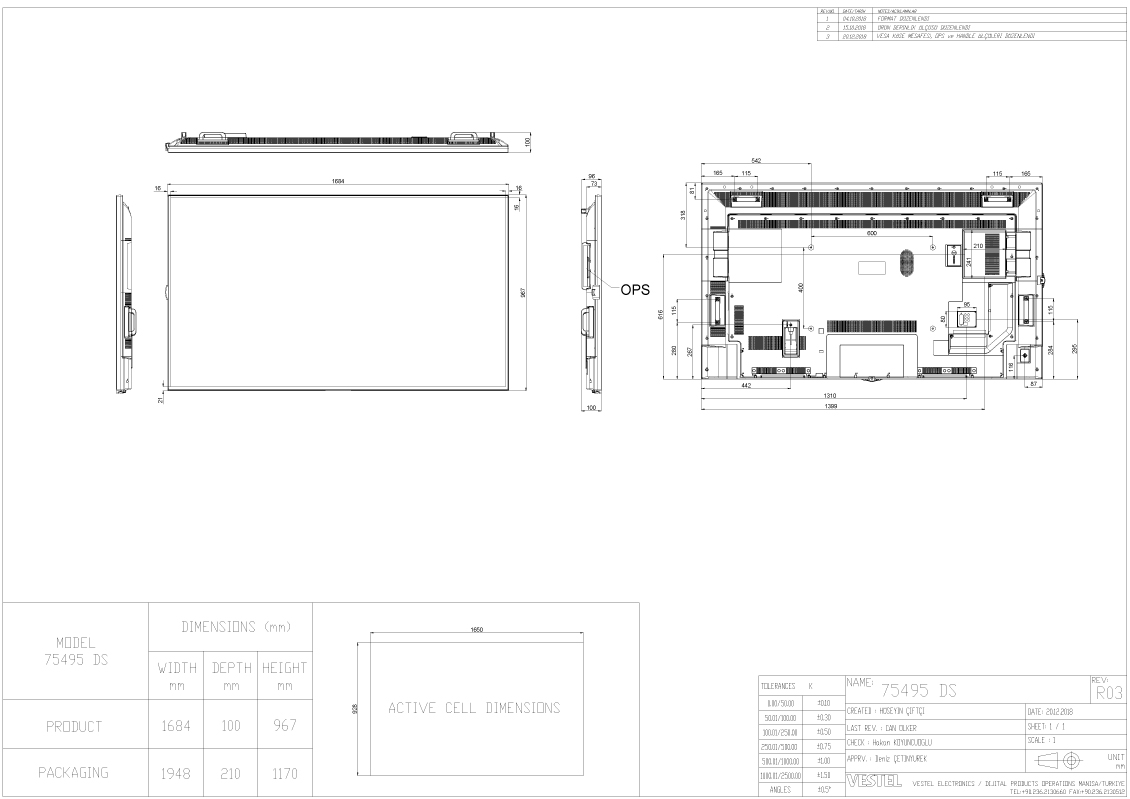

Commercial Datasheet Detailed Mechanical Drawing Detailed Mechanical Drawing RS232 Control Document Wall Mount Drawing
Specifications
Panel
Screen Size 75"
Panel Technology IPS
Backlight Type Direct-Type LED
Brightness (typical) 1000 cd/m²
Native Resolution 3840 x 2160 (16:9) - UHD
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 100000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 1650 x 928 mm
Pixel Pitch (H x V) 0.429 x 0.429 mm
PPI (pixel per inch) 59
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 3%
Refresh Rate 60 Hz
Front Type Ultra Narrow Bezel
Orientation Horizontal / Vertical
Operation Hours 24/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 1xDP1.2a, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0, DP1.2a
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Mechanical
Product Dimensions (WxDxH) 1684 x 100 x 967 mm
Package Dimensions (WxDxH) 1948 x 210 x 1170 mm
Product Weight 37
Package Weight 52
Vesa Mounting 600 x 400 mm - M6
Bezel Width B:21 | T:16 | L/R:16 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 240 W
Deep Standby ≤0.5 W
Features
Main Features Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Hotplug, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, remote control via LAN, Real Time Clock
Mechanical Features Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder
Optional Features OPS Compliance, IR Overlay Touch Compliance
Speaker 2x12W
Accessory
Standard QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
Safety YES
EMC YES
CE YES
