PDU Series

PDU75UF83/4A

  • Resolution: 3840x2160 (UHD)
  • Brightness: 500 cd/m²
  • Operation: 24/7
  • Bezel: 16-39 mm (T/R/L), 21-39 mm (B)
  • Interface: HDMI 2.0 / VGA / USB / RS232 /RJ45 / RJ12 / IR / HP / Audio / Speaker
  • Application Area: Control Room, Retail, Restaurants QSR, Public Venue
INQUIRY TO BUY
Features
Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is desirable for its thinnest depth among our digital signage displays.

Optional OPS Support

All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.

USB Autoplay

USB Autoplay makes content playback simple and effortless.Simply plug your USB memory containing images or video files and the display can begin playback automatically.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Signal Failover

Our SoC Software has a protection for “No Signal” scenario. If the USB is unplugged after your content is set to be displayed with USB, the display will either show your customized banner or search for any other signal from other sources (HDMI, Display Port, etc.). This failover protection is constructed for higher user experience.

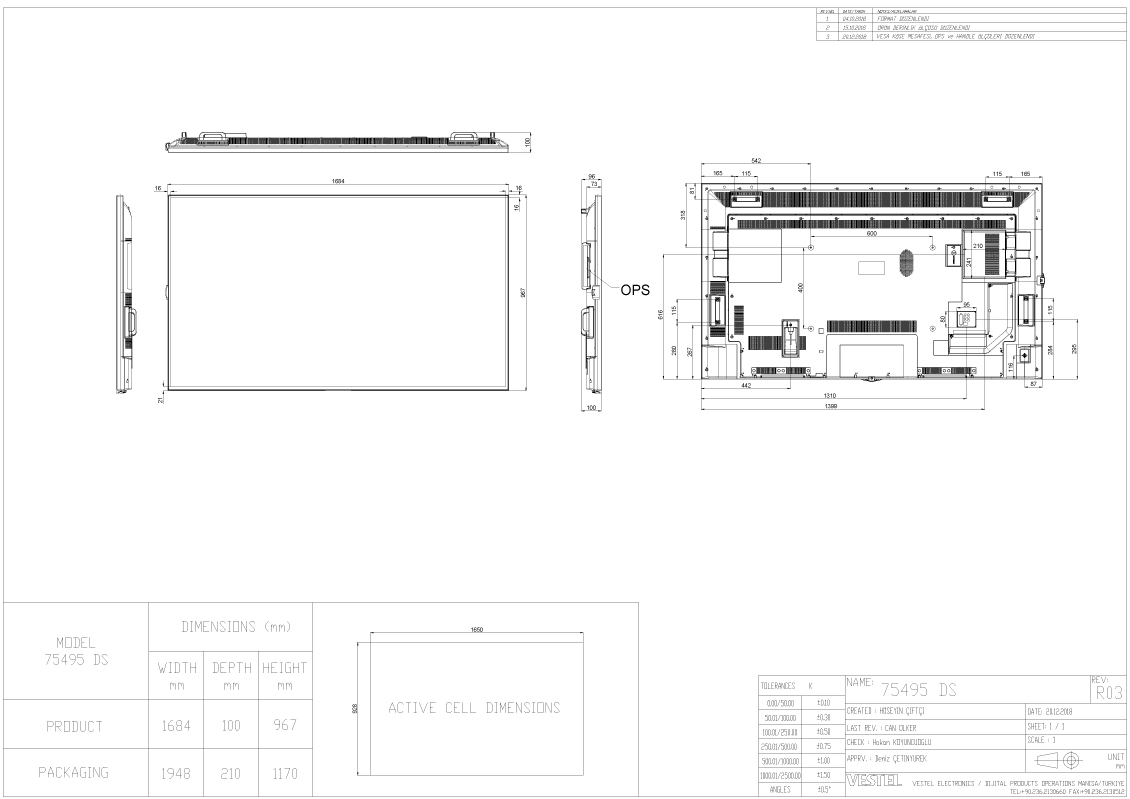

Specification Sheet Commercial Datasheet RS232 Control Document Detailed Mechanical Drawing Wall Mount Drawing Detailed Mechanical Drawing
Specifications
Panel
Screen Size 75"
Panel Technology IPS
Backlight Type Direct-Type LED
Brightness (typical) 500 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 40000:1
Panel Life Time ( Min. ) 50000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 1650 x 928 mm
Pixel Pitch (H x V) 0.429 x 0.429 mm
PPI (pixel per inch) 59
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07G (8bits + FRC)
Screen Treatment 3H
Haze Level 1%
Refresh Rate 60 Hz
Front Type Ultra Narrow Bezel
Orientation Horizontal / Vertical
Operation Hours 24/7
Area of Usage Indoor
Built-in System
Mainboard Model 17MB135VS
Monitor Connectivity
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 1xDP1.2a, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0, DP1.2a
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12
Mechanical
Product Dimensions (WxDxH) 1684 x 100 x 967 mm
Package Dimensions (WxDxH) 1948 x 210 x 1170 mm
Product Weight 37.2 kg
Package Weight 50.2 kg
Vesa Mounting 600 x 400 mm - M6
Bezel Width B:21 | T:16 | L/R:16 mm
Environmental Conditions
Operating Temperature 0-40°C
Operating Humidity 10-90%
Power
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical 240 W
Maximum 320 W
Deep Standby ≤0.5 W
Features
Main Features Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, remote control via LAN, Real Time Clock
Mechanical Features Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder
Optional Features OPS Compliance, IR Overlay Touch Compliance
Speaker 2 x 12 W
Accessory
Standard QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Certification
Safety YES
EMC YES
CE YES
* Specifications are subject to change without prior notice.
