OPS Series

OPS150-71

Discontinued Products
  • Easy-to-install plug-in Android module
  • Media Player, File Manager, Internet Browser, Appstore ready applications
  • Whiteboard, ScreenShare optional applications for IFPDs
  • API set for 3rd party applications
  • Suitable for Android CMS applications
  • Image/Video Rotation
  • Compatible Series: STM, UHM, PDM, PDH, PDU, PDX, NB, 65"VW & IFM, IFD, IFX, IFXD, IFC
  • Application Area: Education, Corporate
INQUIRY TO BUY

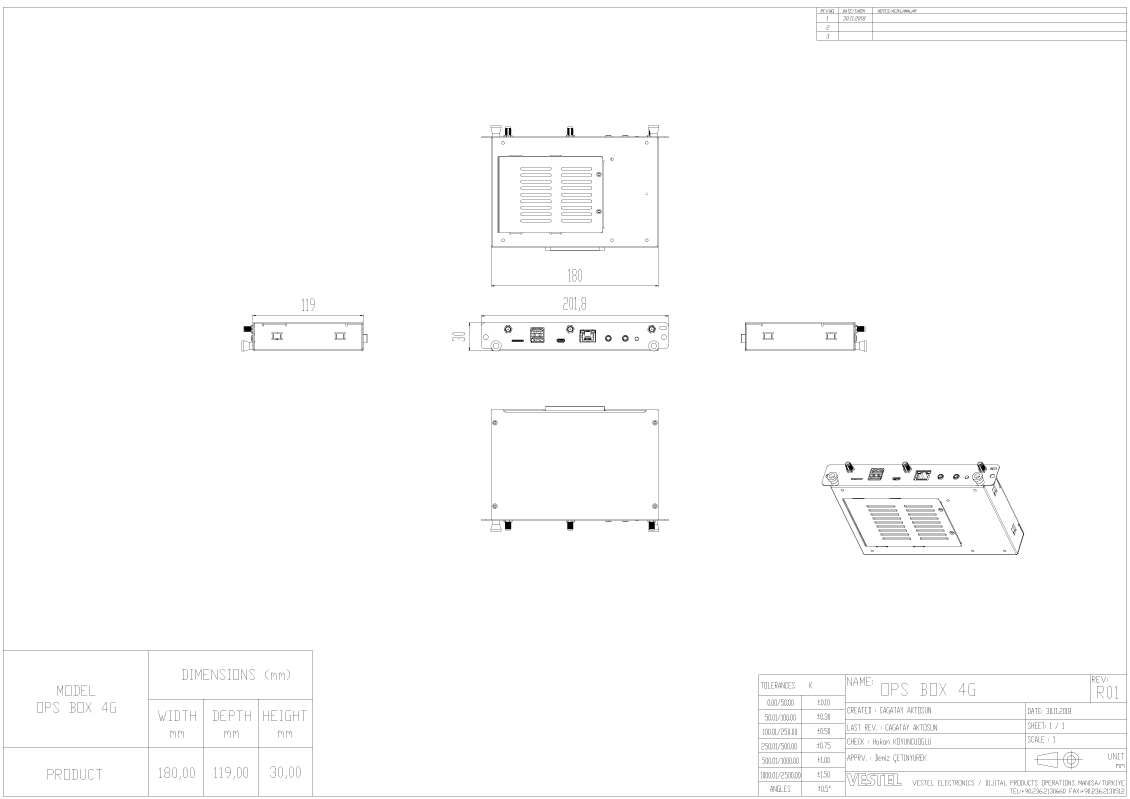

Specification Sheet Commercial Datasheet Detailed Mechanical Drawing Detailed Mechanical Drawing
Specifications
OPS - General Features
CPU 4 core 14000dmips@1.5GHz
Chipset MSO9380AM SoC 512KB L2 Cache
Resolution Support Ultra HD Max. 4096 x 2160 @60Hz
GPU Mali450mp2
Memory 2 GB DDR4
Network LAN: 10/100 Mbps WLAN: 802.11 a/c Bluetooth 4.0 4G (optional)
Storage 8 GB EMMC SD Card : Up to 1TB
I/O Ports 1 x RJ45 2 x USB2.0 1 x micro USB 1 x micro SIM 1 x micro SD Card Slot 1 x Headphone 3.5 mm jack 1 x Microphone 3.5 mm jack 2 x WiFi antenna connector 1 x Power button
Operating System Android 7.1.2, Kernel 3.10.86
Mechanical
Product Dimensions (WxDxH) 180 x 119 x 30 mm
Package Dimensions (WxDxH) 237 x 180 x 59 mm
Product Weight 0.95 kg
Package Weight 1.25 kg
Features
Main Features Android Launcher, Whiteboard App, ScreenSharing App, Screen Lock
* Specifications are subject to change without prior notice.
