Arddangos
Screen Size
55"
Panel Technology
IPS
Backlight Type
Direct-Type LED
Brightness (typical)
400 cd/m²
Native Resolution
1920 x 1080 (16:9) - FHD
Contrast Ratio (typical)
1200:1
Dynamic Contrast Ratio
40000:1
Panel Life Time ( Min. )
30000 Hr
Response Time (typical)
6 ms
Active Area (H x V)
1210 x 681 mm
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
16.7 M (8-bit)
Screen Treatment
3H
Haze Level
1%
Refresh Rate
60 Hz
Front Type
Black Super Narrow Bezel
Orientation
Horizontal
Operation Hours
16/7
Area of Usage
Indoor
System Adeiledig
Mainboard Model
17MB120DSR3-DSOPT3
I/Os cefn
RGB Input
Dsub 15 PIN VGA CON., YPbPr
RGB Output
N/A
Video Input
1xHDMI2.0, DP1.2a, DVI, 1xUSB3.0, 1xUSB2.0, 1xUSB2.0(USB cover)
Video Output
DP1.2a
Audio Input
LINE IN JACK
Audio Output
LINE OUT JACK
External Control
RS232(DSUB 9P), RJ12, Ethernet
External Sensor
N/A
Rhyngweithedd Cyffwrdd
Type of Touch Technology
Infrared (IR) Technology
Continuous Touch Points
10 Points
Sensitivity
Any touch with finger, gloved hand or pointer
Connectivity
HID, TUIO, Flash
Compatibility
Windows®7, Windows®8, Windows®10, Vista, XP, Mac® OS, Linux, Android
Orientation
Landscape support
Calibration
No need
Accuracy
%90 <
Reporting Rate
Up to 450 fps
Glass Type
Anti Glared (AG), 4mm Tempered
Frame Rate
up to 450 fps
Communication
USB 2.0
Power Supply Mode
USB
Supply Voltage
DC 5V +/- 5%
Average Current
<400mA
Response Time
<10ms
Touch Accuracy
+/-2mm (over 90% area)
Touch Durability
Unlimited
HID Compatibility
Yes USB
Object Sizes for Touch
5mm

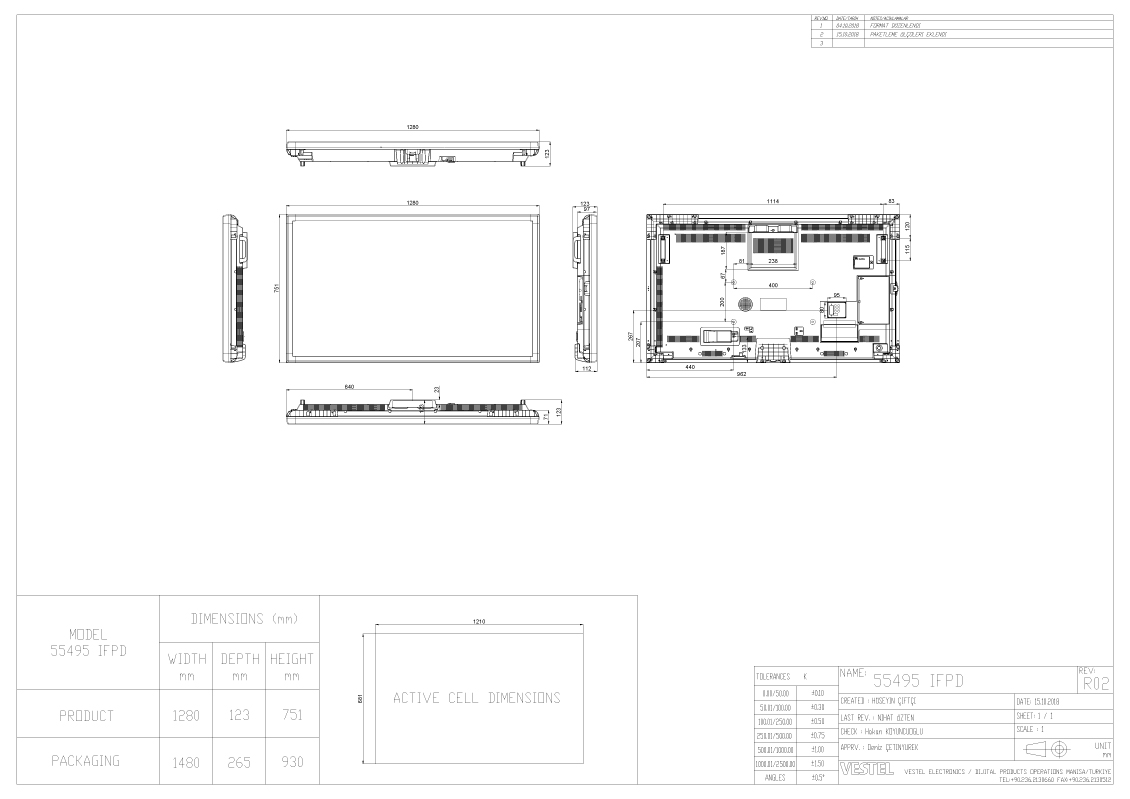

Mechanical
Product Dimensions (WxDxH)
1280 x 123 x 751 mm
Package Dimensions (WxDxH)
1480 x 265 x 930 mm
Product Weight
29.45 kg
Package Weight
38.15 kg
Vesa Mounting
400 x 200 mm
Bezel Width
B:34 | T:34 | L/R:34 mm
Amodau Amgylcheddol
Operating Temperature
+40°C / 0°C
Operating Humidity
90%
Grym
Power Supply
110 VAC - 240 VAC
Defnydd Pŵer
Typical
83 W
Deep Standby
≤0.5W
Features
Main Features
Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Hotplug, Auto-switch on Failover, Panel Lock
Mechanical Features
IR Touch, Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder
Optional Features
OPS Compliance
Speaker
2 x 8 W
Affeithiwr
Standard
QSG, IB, Power Cord, Remote Control, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ardystiad
Safety
YES
EMC
YES
CE
YES
Reability Approval
YES
