Cyfres UHM

UHM86SH80B/4

Discontinued Products
  • Resolution: 3840x2160 (UHD)
  • Brightness: 400 cd/m2
  • Operation: 16/7
  • Bezel: 16-39 mm (T/R/L), 21-39 mm (B)
  • Interface: HDMI 2.0 / VGA / USB / RS232 /RJ45 / RJ12 / IR / HP / Audio / Speaker
  • Application Area: Retail, Restaurants QSR
YMCHWILIAD I BRYNU
Nodweddion
HDMI Deffro

Mwyhau profiad y defnyddiwr wrth ddefnyddio fideo allanol dyfeisiau fel chwaraewyr cyfryngau, rheolyddion arddangos neu gyfrifiaduron personol, ein holl mae gan ddyfeisiau nodwedd HDMI Wakeup yn barod i droi ymlaen / i ffwrdd y arddangos trwy blygio / dad-blygio'r cebl HDMI yn unig.

Source Switching

It is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience.

Pixel Shifting

Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

Scheduler

Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Technoleg DAP (Prosesu Sain Dolby)

Mae ein harddangosfeydd yn darparu perfformiad sain cynhwysfawr trwy ddefnyddio technoleg ddiweddaraf Dolby DAP. Gyda gwreiddio Technoleg DAP, perfformiad sain uwch yn cyflawni erbyn cydraddoli sain deallus, gwelliannau deialog ac amgylchynu upmixing sain.

HDR10 & 4K HDMI @60Hz

Trwy gydnawsedd HDR10, gall cwsmeriaid warantu hynny i gyd cynnwys dan sylw yn bodloni canllawiau HDR ac yn cyrraedd uwchraddol ansawdd y llun mor glir a llachar â phosibl. Gwahanol na llawer o gynhyrchion yn y farchnad, cynnwys 4K dros HDMI cefnogir y ffynhonnell ar 60Hz.

CMS wedi'i fewnosod

Rhaglen rheoli cynnwys wedi'i fewnosod sy'n cefnogi llyfrgell chwarae, templedi parod a rhaglennydd. Gyda'i syml a bwydlenni greddfol ac opsiynau gosodiad, mae'n effeithiol ar gyfer bach a mentrau canolig i wneud rheoli cynnwys yn hawdd.

Auto Launch

We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

SoC

HTML-5 based applications can be developed to work directly within the SoC platform of our displays. The displays are capable of working in either online or offline mode.

Cloi Dewislen

Mae'r nodwedd clo dewislen yn caniatáu cloi'r bwydlenni arddangos ar ôl eu gosod er mwyn atal unrhyw newidiadau neu fynediad wrth gael eu defnyddio mewn man cyhoeddus.

Arddangosfa Di-wifr

Gan ddefnyddio naill ai Microsoft Wireless Display Adapter neu swyddogaethau Rhannu Sgrin Android ar ddyfeisiau Windows ac Android, gallwch chi adlewyrchu sgrin i'r arddangosfa gan ddefnyddio galluoedd arddangos diwifr wedi'u mewnosod heb ddefnyddio unrhyw ddyfeisiau na cheblau allanol.

Rheolaeth Arddangos dros RS232 a LAN

Mae ein platfform yn caniatáu i ddefnyddwyr reoli eu harddangosfeydd, gan ddefnyddio ystod eang o orchmynion trwy naill ai Rhwydwaith Ardal Leol neu gysylltiad Cyfresol RS232 uniongyrchol.

Specification Sheet Taflen Data Masnachol Darlun Mecanyddol Manwl Darlun Mecanyddol Manwl Dogfen Reoli RS232 Darlun Wal Mount
Manylebau
Arddangos
Screen Size 86"
Backlight Type Edge-Type LED
Brightness (typical) 400 cd/m²
Native Resolution UHD: 3840 x 2160 - HDR10
Contrast Ratio (typical) 1200:1
Dynamic Contrast Ratio 40000:1
Panel Life Time ( Min. ) 30000 Hrs
Response Time (typical) 8 ms
Active Area (H x V) 1895 x 1066 mm
Pixel Pitch (H x V) 0.4935 x 0.4935 mm
PPI (pixel per inch) 52
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value 1.07 B (10-bit)
Screen Treatment 2H
Haze Level 3%
Refresh Rate 60 Hz
Front Type SNB
Orientation Horizontal
Operation Hours 16/7
Area of Usage Indoor
System Adeiledig
Mainboard Model 17MB135VS
I/Os cefn
RGB Input VGA(DE-15F)
RGB Output N/A
Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video Output HDMI2.0
Audio Input Line In L/R
Audio Output Headphone, Optic SPDIF
External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12)
External Sensor RJ12

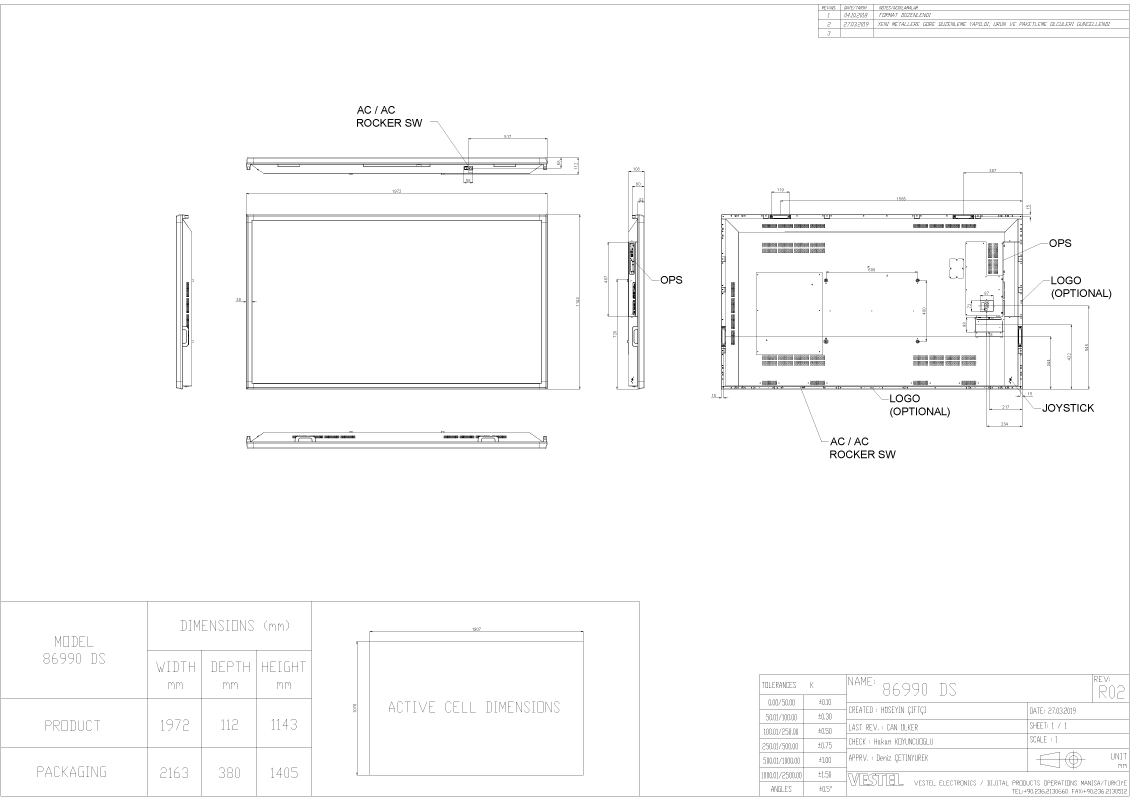

Mechanical
Product Dimensions (WxDxH) 1975 x 103 x 1146 mm
Package Dimensions (WxDxH) 2163 x 318 x 1405 mm
Product Weight 65.8 kg
Package Weight 85.6 kg
Vesa Mounting 600 x 400 mm - M6
Bezel Width B:38 | T:38 | L/R:38 mm
Amodau Amgylcheddol
Operating Temperature 0-40°C
Operating Humidity 10-90%
Grym
Power Supply 110 VAC - 240 VAC - 50/60 Hz
Defnydd Pŵer
Typical 254 W
Deep Standby ≤0.5 W
Features
Main Features Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, remote control via LAN, Real Time Clock
Mechanical Features Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder
Optional Features OPS Compliance
Speaker 2 x 12 W
Affeithiwr
Standard QSG, IB, Power Cord, Remote Control Unit, RC Battery, Mounting Kit, Extension Brackets, IR Extender Cable
Ardystiad
Safety YES
EMC YES
CE YES
* Gall manylebau newid heb rybudd ymlaen llaw.
